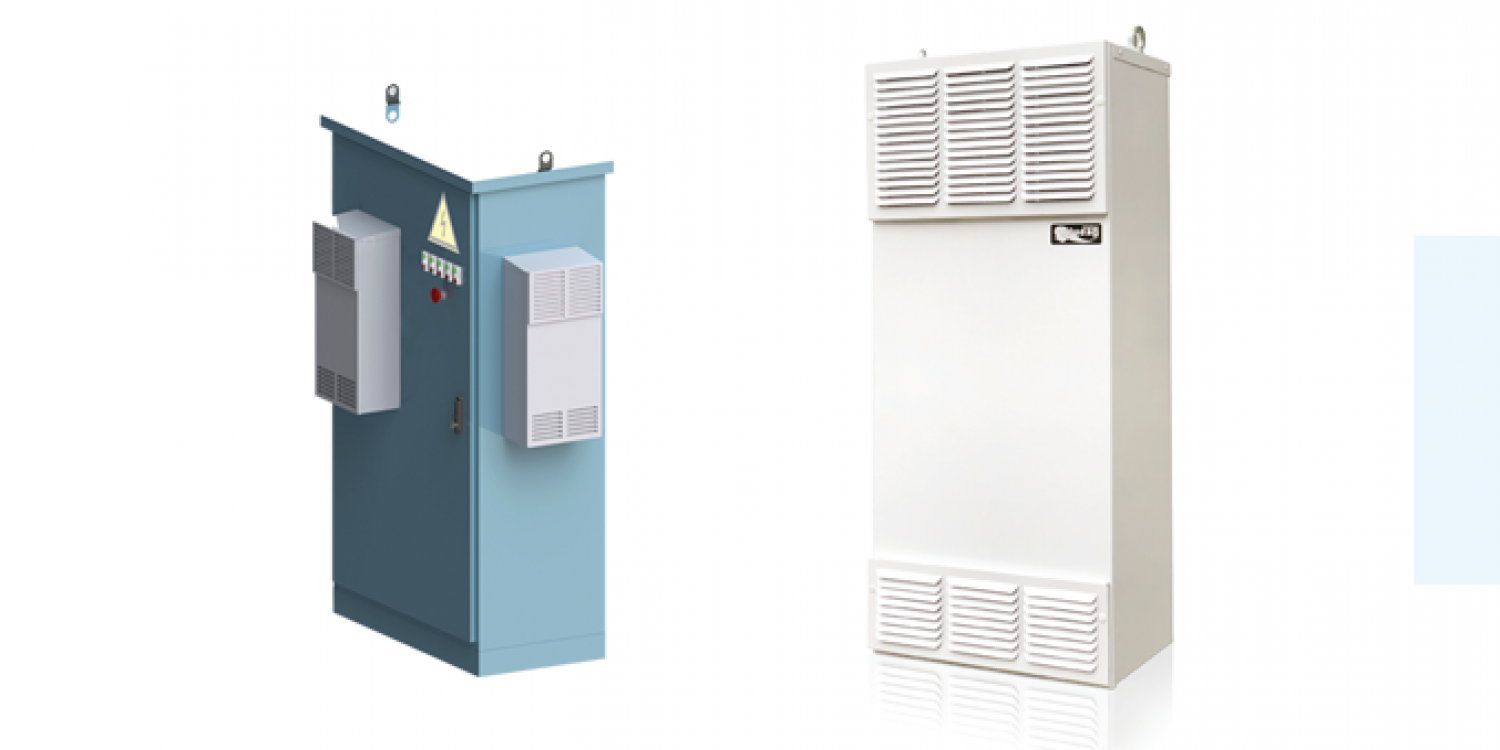

O 4000 Outdoor-Typ Schaltschrank - Kühlgeräte (3700 W)
Summer months approaches, temperature rises in Enclosures with this increase, unscheduled downtime is inevitable. Against to this danger, precaution is our Enclosure Cooling Units.
| TECHNISCHE INFORMATION | O 4000 |
|---|---|
| Cooling Capacity L35 L35 | 3700 W |
| Type of Refrigerant | R134a |
| Amount of Refrigerant | 950 gr |
| Default Thermostat Value | 34 °C |
| Hysteresis | 4 °C |
| External Circuit | 1425 m³/h |
| Internal Circuit | 1175 m³/h |
| Rated Frequency | 50/60 Hz |
| Standard Power Supply | 380-415 V. |
| Power Absorbed L35 | 880 W |
| Running Current | 2.6 A |
| Starting Current | 4.0 A |
| Weight | 60 kg |

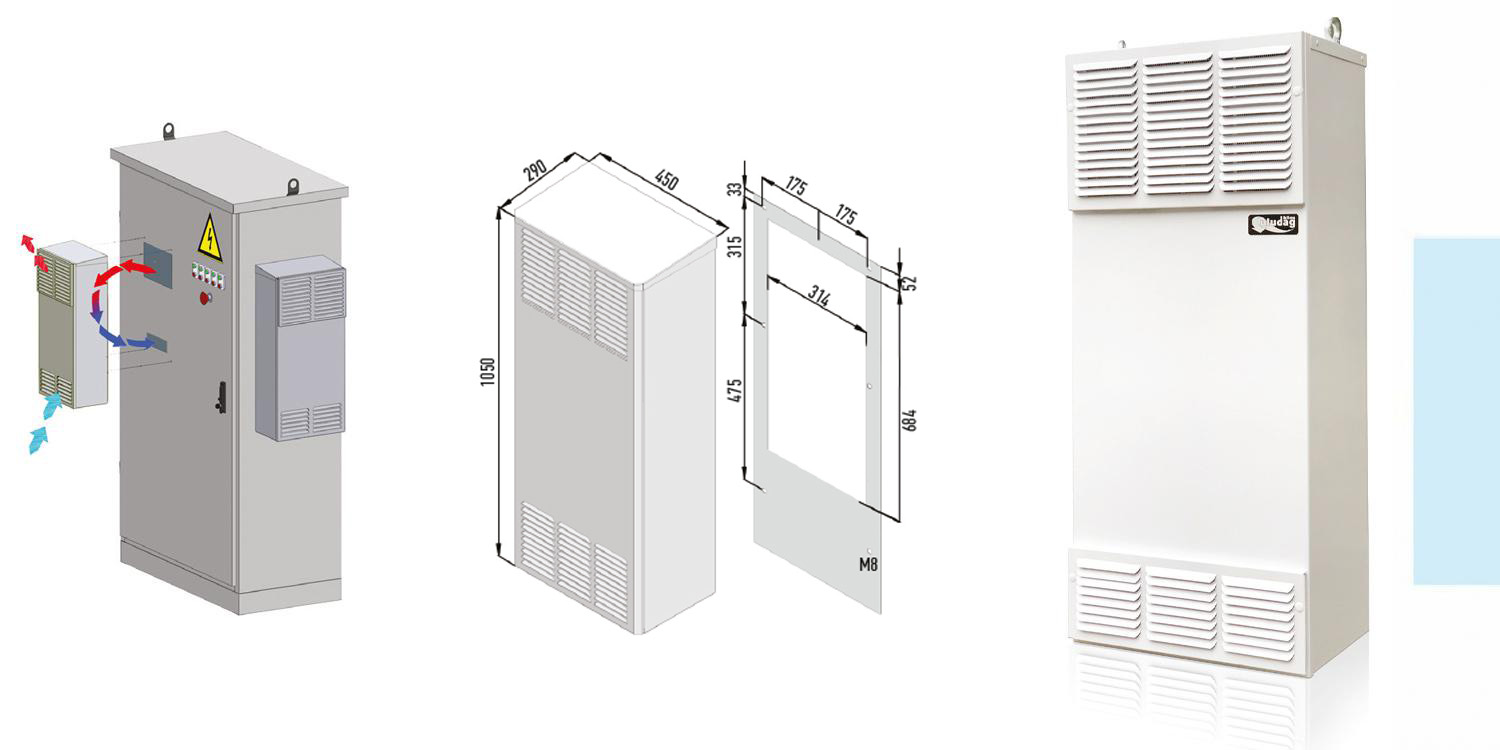

| Height x Width x Depth mm | 1150X450X300 |
| Corrosion Protection | Galvanized |
| Orientation | Wall Mount |
| System of Protection(Ext/In) | IP55 / IP65 |
| Ambient Air Temp. | 0 °C ... +55 °C |
| Compressor | Embraco |
| Fans | EbmPapst |
| Kommunikationsprotokoll | EtherNet/IP , ModBus TCP, ModBus RTU |
